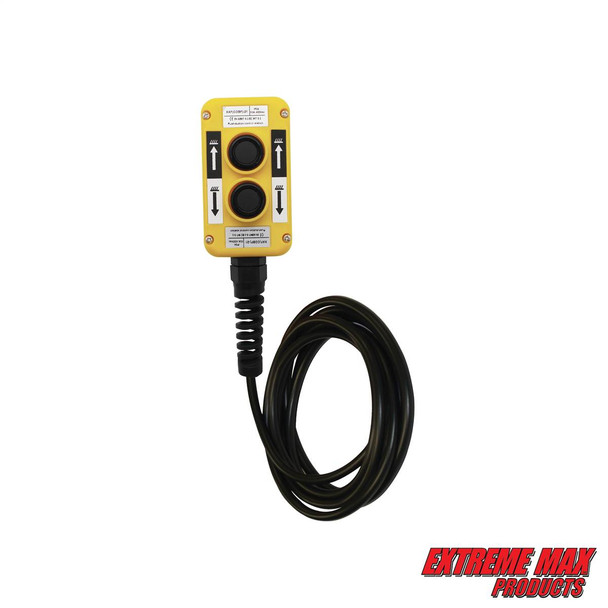

Corded 15ft Pendant Controller for Boat Lift Boss Direct Drive Motor
Description
15-Foot Corded Boat Lift Remote Control & Pendant Controller
Add convenient wired lift remote control to your compatible Boat Lift Boss system with the Extreme Max 3005.7284 Corded 15ft Pendant Controller.
Designed as an optional accessory for select Boat Lift Boss Key-Turn Direct Drive Motors and Integrated Winch Drive Systems, this 15-foot corded pendant gives you an additional operating position within reach of the attached cable. Instead of operating your boat lift only from the motor’s built-in key-turn control, you can operate a compatible system from a separate dockside position while keeping clear visibility of the boat and lifting equipment.
The pendant’s IP65-rated enclosure offers protection against dust and water jets under the rating’s specified test conditions. It is compatible with six specific Boat Lift Boss models, including select 12/24V and 120V direct-drive motors and 5,000 lb and 7,500 lb integrated winch systems.
- 15 ft cord for an additional dockside control position
- Wired, corded lift remote control
- IP65-rated pendant enclosure
- For 6 specific Key-Turn models (12/24V and 120V)
- Requires the pre-installed accessory pigtail adapter
Not a Universal Boat Lift Boss Controller
Your motor must match one of the six specified model numbers and include a pre-installed accessory pigtail adapter. Do not assume compatibility with Gen6 Bluetooth systems, wireless-only controllers, or older motors with different connections.
Direct Drive
3006.4518 (12/24V Key-Turn) and 3006.4509 (120V Key-Turn).
5,000 lb Integrated Winch
3006.4580 (12/24V Key-Turn) and 3006.4571 (120V Key-Turn).
7,500 lb Integrated Winch
3006.4656 (12/24V Key-Turn) and 3006.4647 (120V Key-Turn).
If you cannot locate the motor model or accessory connection, contact Weeders Digest at 877-224-4899 before ordering.
Convenient Corded Lift Remote Control in Four Steps
Confirm Your Motor
Locate your Boat Lift Boss model number and verify it appears on the compatibility list.
Check the Pigtail Adapter
Confirm the compatible Key-Turn motor has the required pre-installed accessory connection.
Connect the Pendant
Follow the applicable Extreme Max instructions to attach the pendant to the accessory connection.
Operate With Clear Visibility
Use the pendant from a suitable position within the 15-foot cord’s reach while monitoring the lift.
Why Add a Corded Pendant Control to Your Boat Lift Boss?
An optional upgrade that adds another control option without replacing the complete motor.
15 Feet of Reach
An additional operating position away from the lift motor within the cord’s length.
Wired Control
A physical connection instead of a separate wireless radio or Bluetooth signal.
IP65 Enclosure
Dust-tight and resistant to water jets under the specified rating; not rated for immersion.
AC & DC Systems
Supports the listed 12/24V and 120V Key-Turn direct-drive and integrated winch models.
Accessory Only and Safe Operation
Accessory Only
This lift remote control does not include a Boat Lift Boss motor, winch, boat lift, battery, power supply or lift-specific motor installation kit.
Boat Lift Operation Safety
Keep people clear of moving lift components, cables, pulleys, the boat and the lifting structure. Operate only where you can observe the lift, and follow the motor and lift manufacturer’s instructions.
Need Help?
Need help identifying your Boat Lift Boss or selecting the right pendant control? Call Weeders Digest at 877-224-4899.
Operate Your Compatible Boat Lift Boss From the Dock
The Extreme Max 3005.7284 15-foot corded pendant adds a wired control position to six specific Boat Lift Boss Key-Turn models equipped with the accessory pigtail adapter.
Review the Compatibility tab before ordering, and see Installation Instructions for a general setup overview.
Features
Boat Lift Remote Control & Pendant Features
What the pendant adds to a compatible Key-Turn Boat Lift Boss.
15-Foot Cord
Provides an additional control position within the cord’s available length.
Wired Pendant Control
A physical connection for operating a compatible Key-Turn Boat Lift Boss system.
IP65 Protection Rating
Rated for protection from dust and water jets under IP65 conditions.
Key-Turn Compatibility
Designed for six specific Boat Lift Boss Key-Turn motor and integrated winch models.
12/24V System Support
Compatible with the listed 12/24V DC Key-Turn systems.
120V System Support
Compatible with the listed 120V AC Key-Turn systems.
Direct Drive Compatibility
Supports the specifically identified Key-Turn Direct Drive Motors.
Integrated Winch Compatibility
Supports the listed 5,000 lb and 7,500 lb Key-Turn Integrated Winch Drive Systems.
Accessory Pigtail Connection
Requires a compatible motor with its pre-installed accessory pigtail adapter.
Compatibility
Boat Lift Boss Pendant Control Compatibility
The Extreme Max 3005.7284 is listed for the following Key-Turn models equipped with a pre-installed accessory pigtail adapter.
| 3006.4518 | Key-Turn Direct Drive · 12/24V · capacity depends on lift system · Yes, with required pigtail |
|---|---|
| 3006.4509 | Key-Turn Direct Drive · 120V · capacity depends on lift system · Yes, with required pigtail |
| 3006.4580 | Key-Turn Integrated Winch · 12/24V · 5,000 lb · Yes, with required pigtail |
| 3006.4571 | Key-Turn Integrated Winch · 120V · 5,000 lb · Yes, with required pigtail |
| 3006.4656 | Key-Turn Integrated Winch · 12/24V · 7,500 lb · Yes, with required pigtail |
| 3006.4647 | Key-Turn Integrated Winch · 120V · 7,500 lb · Yes, with required pigtail |
Requirements Before Ordering
- Your motor model must match one of the six listed model numbers.
- The motor must have the pre-installed accessory pigtail adapter.
- The pendant connector must match the manufacturer’s specified arrangement.
- The motor and boat lift must be installed and operated according to their instructions.
Compatibility is not established for Gen6 Bluetooth motors, other model numbers, unrelated boat lift motors, or systems missing the necessary pigtail connection. Unsure about fitment? Find the motor identification label and contact Weeders Digest at 877-224-4899.
How It Works
How the Corded Pendant Control Works
The Extreme Max pendant provides an additional wired operating interface for a compatible Boat Lift Boss Key-Turn motor.
-
The Boat Lift Boss Powers the Lift
The existing motor operates the lift through its applicable power supply and drive system.
-
The Accessory Pigtail Provides a Connection
A compatible motor includes the pre-installed accessory pigtail adapter required for the controller.
-
The Pendant Connects to the Motor
The corded remote attaches using the manufacturer’s specified accessory connection.
-
The Operator Controls the Lift
The pendant provides a convenient operating position within the 15-foot cord’s reach.
-
The Lift Operates Within Its Original Limits
The pendant does not change the lift’s rated capacity, power requirements or safety procedures.
This lift remote control operates through a corded connection. It is not a Bluetooth controller or an independent radio-frequency remote.
Installation Instructions
How to Install the Boat Lift Boss Pendant Control
These steps provide a general installation overview. Always follow current Extreme Max instructions for your exact Boat Lift Boss motor and pendant.
-
Verify the Compatible Model
Confirm that your Boat Lift Boss matches one of the six supported Key-Turn model numbers.
-
Locate the Accessory Pigtail
Verify that the required accessory pigtail adapter is already installed on the motor.
-
Shut Down the Motor System
Isolate the motor’s power supply according to its instructions before connecting or inspecting electrical accessories.
-
Inspect the Controller
Check the pendant enclosure, 15-foot cord and connector for damage, corrosion or moisture.
-
Connect the Pendant
Attach the controller to the specified compatible pigtail connection. Do not force connectors or alter wiring.
-
Route the Cord Safely
Keep the cord clear of lift cables, pulleys, moving equipment, pinch points, sharp edges and walkways.
-
Restore Power and Test
Follow the motor manufacturer’s test procedure with people clear of the lift.
-
Use the Pendant From a Safe Position
Operate only when you can clearly see the boat and the entire lift movement.
Do not splice the pendant cord, create an improvised adapter, bypass the original connector, or connect it to an unsupported motor.
Accessory pigtail required: this listing does not establish that a retrofit adapter is included or available for motors without the required factory connection.
IP65 Weather Protection
What Does IP65 Mean for This Lift Remote Control?
The Extreme Max 3005.7284 pendant control has an IP65 enclosure rating.
IP6X: Dust-Tight
The first digit indicates a dust-tight enclosure under the applicable test standard.
IPX5: Water-Jet Resistance
The second digit indicates resistance to water jets under specified test conditions.
Not Rated for Immersion
IP65 does not mean the controller can be submerged or left underwater.
Inspect and Store Properly
Keep the cord and connections in good condition and follow the manufacturer’s storage instructions.
The IP65 rating applies to the stated pendant enclosure. Do not assume that every connector, adapter or modified cord has the same rating.
What's Included
What’s Included With the 15-Foot Pendant Controller
An accessory that operates with an existing compatible Boat Lift Boss system. It is not a complete powered boat lift package.
| Corded Pendant Controller | Extreme Max 3005.7284 lift remote control for supported Boat Lift Boss Key-Turn systems |
|---|---|
| Attached Cord | 15-foot cord |
| Accessory Connection | Designed for a compatible pre-installed Boat Lift Boss pigtail adapter |
Not Included or Not Confirmed
- Boat Lift Boss motor
- Integrated winch system
- Boat lift or lift frame
- Lift-specific motor installation kit
- Battery or AC power supply
- Retrofit pigtail adapter for unsupported motors
Applications
Where a Corded Boat Lift Remote Control Is Useful
Situations where a wired pendant makes lift operation easier.
Dockside Operation
Operate a supported lift from a suitable dockside position within the 15-foot cord’s reach.
Additional Control Location
A second operating position when the built-in Key-Turn switch is inconveniently located.
Boat Lift Accessories
Add an accessory to an existing compatible system without replacing the entire motor.
Direct Drive Motors
Supports the two specifically listed Key-Turn direct-drive models.
Integrated Winch Systems
Supports the listed 5,000 lb and 7,500 lb Key-Turn integrated winch models.
Wired Control Preference
Pendant control for owners who prefer a physical wired interface rather than a wireless system.
Never operate your boat lift from a position that blocks your view of the boat or lifting mechanism. Keep the cord away from moving equipment.
Controller Comparison
Corded Pendant vs. Wireless & Bluetooth Lift Controls
How the pendant compares with other Boat Lift Boss control options.
| 15 ft Corded Pendant Control | Uses a wired connection to a supported Key-Turn Boat Lift Boss. Requires an approved model and pre-installed accessory pigtail adapter. |
|---|---|
| Built-In Key-Turn Control | Operates through the motor’s integrated key switch. Control position is located at the motor. |
| Wireless Lift Remote Control | Uses a compatible radio-frequency remote and receiver system. Model and receiver compatibility must be confirmed. |
| Gen6 Bluetooth Boat Lift Control | Uses supported smartphone and integrated motor controls. A different control system; pendant compatibility is not established by this listing. |
A corded pendant is useful when you own a supported Key-Turn model with a pigtail connection. Wireless and Bluetooth options require their own compatible motor or receiver systems. Compare Boat Lift Boss motor options.
Care & Storage
Boat Lift Pendant Control Maintenance & Storage
Keep the pendant, cord and connector in good condition.
- Inspect the cord. Look for cracked insulation, cuts, abrasion or exposed wiring.
- Check the enclosure. Inspect the pendant body and controls for physical damage.
- Protect the connector. Keep connector contacts clean and follow manufacturer instructions for moisture protection.
- Avoid cord strain. Do not pull the controller or disconnect it by tugging on the cable.
- Keep clear of moving parts. Route the cord away from lift cables, pulleys, shafts and pinch points.
- Clean carefully. Avoid submerging the pendant or pressure-washing electrical connections.
- Inspect seasonally. Check the controller before spring startup and after extended periods of non-use.
- Store safely. When removed from service, keep the pendant clean, dry and protected.
Stop using it and follow approved service or replacement procedures. Do not splice or improvise repairs to electrical control wiring.
Troubleshooting
Boat Lift Remote Control Troubleshooting
What to check and what to do.
| Pendant does not operate the lift | Check the motor model, power supply and accessory connection. Follow Boat Lift Boss troubleshooting instructions and verify the required pigtail. |
|---|---|
| Connector does not fit | Check the motor model number and pigtail connection. Do not force the connector; contact support. |
| Intermittent operation | Check for visible damage, cord condition, moisture and connector condition. Stop use and request qualified inspection. |
| Lift does not respond correctly | Check motor operation and original system instructions. Stop operation and follow the manufacturer troubleshooting procedure. |
| Cord cannot reach the desired position | Choose a safe controller location and routing distance. Do not add an unapproved extension or splice. |
| Controller was submerged | Possible moisture damage. Stop using it and contact the manufacturer or an approved service provider. |
Have your pendant part number (3005.7284), your Boat Lift Boss model number and a description of the problem ready. Never inspect or modify energized electrical connections; disconnect power according to the original motor manufacturer’s instructions.
Specifications
Extreme Max 3005.7284 Lift Remote Control Specifications
Full product specifications.
| Product Name | Corded 15ft Pendant Controller for Boat Lift Boss Direct Drive Motor |
|---|---|
| Brand | Extreme Max |
| Manufacturer Part Number | 3005.7284 |
| Product Type | Corded lift remote control / pendant control accessory |
| Cord Length | 15 feet |
| Protection Rating | IP65 pendant enclosure |
| Connection Requirement | Compatible pre-installed accessory pigtail adapter |
| Compatible System Type | Select Boat Lift Boss Key-Turn Direct Drive and Integrated Winch Drive systems |
| Compatible Direct Drive Models | 3006.4518 and 3006.4509 |
| Compatible 5,000 lb Winch Models | 3006.4580 and 3006.4571 |
| Compatible 7,500 lb Winch Models | 3006.4656 and 3006.4647 |
| Motor System Power Options | Specific 12/24V and 120V Boat Lift Boss models |
| Wireless or Bluetooth? | No; corded pendant |
| Universal Compatibility? | No |
| Gen6 Bluetooth Compatibility? | Not established by the published compatibility list |
| Motor / Battery / Boat Lift Included? | No |
| Pigtail Retrofit Included? | Not specified |
| Warranty | Confirm current warranty terms with Weeders Digest |
The 5,000 lb and 7,500 lb figures refer to compatible integrated winch models, not a lifting capacity assigned to the pendant. The controller does not increase the boat lift’s capacity.
Related Tools
Products That Work With Your Boat Lift Boss
Match accessories to the exact motor. A Boat Lift Boss motor is not automatically compatible with every lift remote control, pendant control or wireless accessory. Browse all boat lift motors, installation kits and accessories or replacement parts.
FAQs
Boat Lift Remote Control & Pendant Control FAQs
Answers about compatibility, installation, protection rating and safe operation.
What is the Extreme Max 3005.7284 lift remote control?
It is a 15-foot corded pendant controller designed for six specific Boat Lift Boss Key-Turn models equipped with a pre-installed accessory pigtail adapter.
What is pendant control on a boat lift?
Pendant control refers to operating equipment using a handheld controller attached by a cable. This Boat Lift Boss pendant provides an additional wired operating position for compatible Key-Turn systems.
Is this a wireless lift remote control?
No. The Extreme Max 3005.7284 is a corded remote with a 15-foot attached cable.
How long is the pendant cord?
The pendant has a 15-foot cord.
Which Boat Lift Boss models are compatible?
The listed models are 3006.4518, 3006.4509, 3006.4580, 3006.4571, 3006.4656 and 3006.4647, provided they have the required pre-installed accessory pigtail adapter.
Does the pendant work with every Boat Lift Boss motor?
No. Only the specified Key-Turn models with the necessary accessory connection are listed as compatible.
Will this pendant work with Gen5 Key-Turn systems?
It is designed for specific Key-Turn models. Verify the complete motor model number and accessory pigtail rather than relying on the generation alone.
Does it work with Gen6 Bluetooth Boat Lift Boss motors?
Gen6 Bluetooth motors are not identified in the published compatibility list. Do not assume the pendant is compatible.
Does this lift remote control work with a 12V motor?
Yes, for the specified compatible 12/24V Key-Turn models with the required accessory pigtail.
Does it work with a 120V Boat Lift Boss?
Yes, for the listed compatible 120V Key-Turn models with the required accessory pigtail.
Will the controller work with model 3006.4518?
Yes, when the model has the required pre-installed accessory pigtail adapter.
Will the controller work with model 3006.4509?
Yes, when the required pigtail connection is present.
Will it work with model 3006.4580?
Yes. This 5,000 lb 12/24V Key-Turn Integrated Winch model is listed as compatible with the required pigtail.
Will it work with model 3006.4571?
Yes. This 5,000 lb 120V Key-Turn Integrated Winch model is listed as compatible with the required pigtail.
Will it work with model 3006.4656?
Yes. This 7,500 lb 12/24V Key-Turn Integrated Winch model is listed as compatible with the required pigtail.
Will it work with model 3006.4647?
Yes. This 7,500 lb 120V Key-Turn Integrated Winch model is listed as compatible with the required pigtail.
What is the accessory pigtail adapter?
It is the required pre-installed connection on supported Boat Lift Boss Key-Turn units that allows the compatible pendant controller to attach.
What if my motor does not have an accessory pigtail?
The listed compatibility requirements are not met. Contact Weeders Digest or Extreme Max before purchasing. Do not modify the motor wiring.
Does the pendant include a retrofit pigtail adapter?
A retrofit pigtail adapter is not specified as included. Confirm the required connection before ordering.
Is this pendant control Bluetooth-enabled?
No. It is a corded accessory, not a Bluetooth controller.
What does IP65 mean?
IP65 means the enclosure is dust-tight and resistant to water jets under specified test conditions.
Is this lift remote control waterproof?
It has an IP65 rating, but this does not mean it is suitable for immersion. Do not submerge it in lake water.
Can I leave the pendant outside?
The enclosure is IP65-rated. Follow Extreme Max storage and installation instructions and keep the connections protected.
Can I operate my boat lift from the dock?
Yes, if the cord reaches a safe operating position and you can clearly see the boat and lift throughout operation.
Can I extend the 15-foot cord?
Do not splice the cord or use an unapproved extension. Contact Weeders Digest or Extreme Max about approved options.
Does it work with 5,000 lb integrated winch systems?
It is listed for models 3006.4580 and 3006.4571 when equipped with the required accessory pigtail.
Does it work with 7,500 lb integrated winch systems?
It is listed for models 3006.4656 and 3006.4647 when equipped with the required accessory pigtail.
Will pendant control increase the lifting capacity?
No. The controller does not change the lift’s rated capacity or operating limitations.
Does this accessory include a boat lift motor?
No. The Boat Lift Boss motor is sold separately.
Does it include a motor installation kit?
No lift-specific motor installation kit is listed as included with the pendant.
Does the pendant need its own battery?
No separate pendant battery is listed. It operates through the corded connection to a compatible powered motor.
Is the pendant easy to install?
The motor must have the required pre-installed accessory connection. Follow Extreme Max instructions with the motor power safely isolated.
Can I install it without modifying the motor?
The pendant is intended for compatible motors that already have the required pigtail. Do not modify wiring to install it.
Can I operate the boat lift without seeing it?
No. Maintain clear visibility of the boat and lift while operating the controller.
What if the lift remote control stops working?
Check the motor model and required connection, then follow the manufacturer’s troubleshooting procedure. Stop using the controller if wiring or the enclosure is damaged.
Can I repair or splice a damaged controller cord?
Do not improvise electrical repairs. Contact Extreme Max or a qualified service provider about approved repair or replacement procedures.
Can the pendant be submerged?
No. IP65 is not an immersion rating.
How should I store the pendant control?
Keep it clean, dry and protected from damage, and avoid tight bends or abrasion in the cord.
Can I connect it to another brand of boat lift motor?
The published compatibility list identifies six specific Boat Lift Boss Key-Turn models. Other brands are not established as compatible.
What if I don’t know my Boat Lift Boss model number?
Locate the identification label or product documentation, and contact Weeders Digest with the model number and a photo of the accessory connector.
Does this controller have a warranty?
Specific warranty terms are not stated in the product description. Contact Weeders Digest to confirm current coverage.
Where can I find other Boat Lift Boss accessories?
Browse Boat Lift Motors & Accessories for available equipment, installation kits and related products.
Who can help confirm compatibility?
Call Weeders Digest at 877-224-4899 with your Boat Lift Boss model number to confirm the appropriate controller.
Related Products
Boat Lift Boss Direct Drive Boat Lift Motor 120 V AC or 12/24 V DC | Extreme Max
