Neptune Rake | Aquatic Weed Harvester & Muck Dredge

(No reviews yet) Write a Review
Availability:
Take Advantage of the Season-End Price Reduction!!
On Sale
  • Neptune Rake Aquatic Weed Cropper Harvester
  • Neptune Rake | Aquatic Weed Harvester & Muck Dredge
  • Neptune Rake | Aquatic Weed Harvester & Muck Dredge
  • Neptune Rake | Aquatic Weed Harvester & Muck Dredge
  • Neptune Rake | Aquatic Weed Harvester & Muck Dredge
  • Neptune Rake | Aquatic Weed Harvester & Muck Dredge
  • Neptune Rake Portable Winch CW4000 capstan winch powered by Honda 4-stroke GX50
  • Neptune Rake | Aquatic Weed Harvester & Muck Dredge
  • Neptune Rake | Aquatic Weed Harvester & Muck Dredge
  • Neptune Rake | Aquatic Weed Harvester & Muck Dredge
  • Neptune Rake | Aquatic Weed Harvester & Muck Dredge
Now: $5,339.00
Was: $6,399.00

Description


 The Neptune Rake is an innovative yet affordable harvester/dredger that can be used for both harvesting submersed lake and pond vegetation or dredging muck and partially decomposed vegetation from your lake or pond bottom.

NEPTUNE RAKE VIDEO #1

BENEFITS

  • Only product on the market that can harvest lake weeds and dredge muck simultaneously
  • Can harvester up to one-ton of wet lake weeds and muck in a single pass
  • Affordable solution to dredging
  • Eco-friendly alternative to using herbicides
  • 2-person operation from assembly to job completion

The Neptune Rake is the only product on the market that can harvest lake and pond weeds and dredge lake muck and sediment simultaneously!  When you compare the Neptune Rake to expensive dredging alternatives or harmful herbicide treatments this feature provides lake and pond owners with a relatively affordable and eco-friendly option for preventing lake weeds from overtaking your lake and pond and sediment from filling in your body of water.



The Neptune Rake Includes:

  • A 2-section marine grade stainless steel rake that is just over 7’ wide x 40” deep.
  • A heavy-duty foam cell float that is 6.5‘wide x 36” deep which tethers to the rake and serves as the deployment mechanism for the rake.
  • 600 feet - 3-strand twisted 3/8” polypropylene rope. It is highly visible, lightweight floating rope with a tensile strength of 2,450 lbs. Resists rot, mildew, moisture and chemicals.

An optional heavy-duty capstan winch powered by the bullet-proof GXH50 Honda gas engine.

The Neptune Rake System is priced without the winch.





Gas-Powered Capstan Winch:

  • Portable Capstan Winch
  • Honda 4-stroke GXH50 cc
    See "specifications" tab above for detailed specs

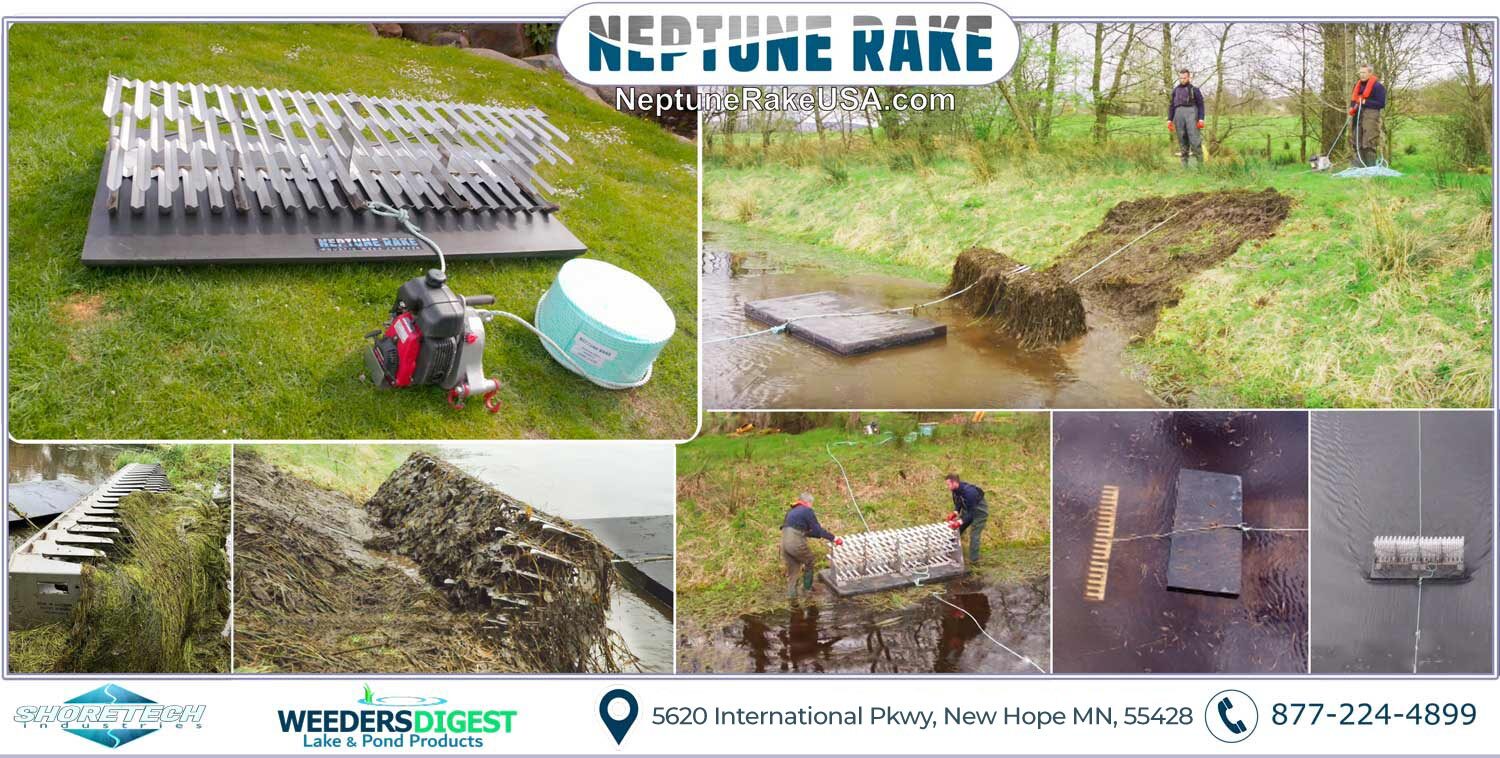

The Stainless Steel rake can be assembled in about 10 minutes and two people can easily deploy and operate from your lake or pond shoreline.  Once deployed, the Neptune Rake can harvest up to 2,000 lbs of wet aquatic vegetation and muck in a single pass!

Simple Operation but Big Results.

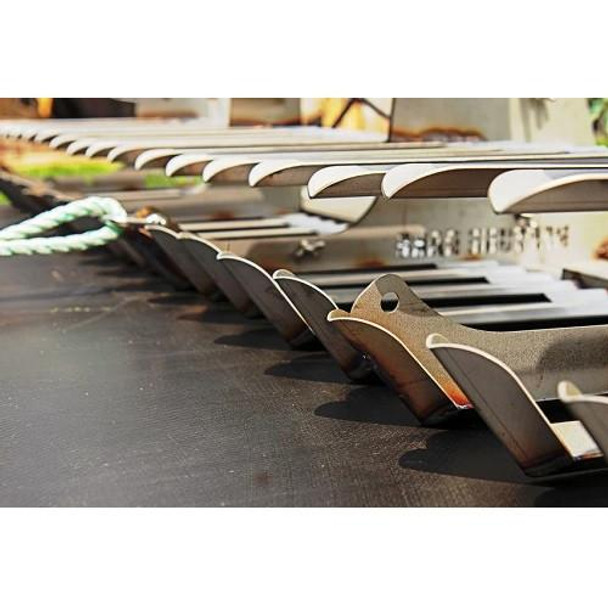

The off-set tines of the rake force aquatic weeds to zig zag up through the rake and jam, weeds are up rooted and cropped at their base, the rake also gathers sediment and sludge. The winch hauls the loaded rake right up onto dry land, two men then simply tip it forwards to dump the aquatic weeds then set it back on the float for the next haul.


Lay out gather rope to far shore and attach the winch to a suitable tree or ground anchor then set the rake on the float.


The float is then pulled to the area of the pond you want to begin harvesting.




The Neptune Rake is easily deployed by pulling on both gather rope and winch rope, the rake slides off the float and lands on the lake floor.


The winch is then used to haul the rake across the lake floor gathering aquatic weeds, debris and muck and sediment.


The winch hauls the loaded rake right up onto dry land, two men then simply tip it forwards to dump the weed then set it back on the float for the next haul. Mobile pond life have to opportunity to return to the pond unharmed.

 NEPTUNE RAKE VIDEO #2

Applications:

-Fish ponds
-Swimming ponds
-Farm ponds
-Retention ponds
-Lake coves
-Channels
-Canals
-Small lakes



CALL US FOR A CUSTOM QUOTE TODAY!  877-224-4899

SPECIFICATIONS

Neptune Rake System

Rake: 2-section marine grade stainless steel rake that is just over 7’ wide x 40” deep.
Float Material: Heavy-duty closed cell foam
Float Dimensions: 6.5ft x 3ft
Tow Rope: 600ft long | 3/8 inch, 3-strand twisted polypropylene
Tow Rope Strength: 2,450 lbs. Max



CAPSTAN WINCH (optional add-on)

The Optional capstan winch for the Neptune Rake System is powered by the Honda multi-position GX50 4-stroke engine. Equipped with a a centrifugal clutch that activates when you pull the rope. When the rope is released, the drum stops spinning and the quick release automatic anti rollback device does its job and holds the load in position! You can also disengage the rope in one simple movement! A light, powerful, safe and very simple winch to operate.

Honda 4-stroke GXH50 cc  (Model# PCW4000 )

CAPACITY
Maximum Pulling Force With Standard Drum (imperial) : 2,200 lb
Double Line Pulling Force With Standard Drum (imperial) : 4,400 lb
Maximum Pulling Force With Optional Drum (imperial) : 1,600 lb
Double Line Pulling Force With Optional Drum (imperial) : 3,200 lb

MAX SPEED: 44 feet/minute

ENGINE/MOTOR & GEAR BOX
Engine/Motor : Honda 4-stroke GXH50 cc
Clutch : Centrifugal. Activates with the ARM mechanism
Gear Box and Gears : Aluminum alloy gear box. Heat treated 3-stage spur gears. Shafts mounted on ball bearings. Oil bath lubrication.
Gear Ratio : 200:1
Brake : Anti-reversing roller clutch bearing
Work Cycle : Continuous

WEIGHT & DIMENSIONS
Weight: 26.5 lb
Width: 16.5"
Height: 11.8"
Depth: 11.2"

WARRANTY
Private Use : 5 years
Commercial Use : 1 year
Engine/Motor : Honda International Warranty
Certification CE
