Receiver for Blue Tipz Transmitters
Description

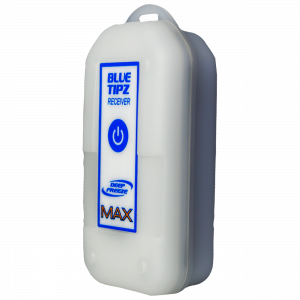

BlueTipz Receiver: Hear Strike Alerts & Extend Your Tip Up Alarm Range
The BlueTipz Receiver, also commonly searched as the Blue Tipz Receiver, adds an audible and visual alert to your BlueTipz ice fishing system while acting as a wireless relay between compatible BlueTipz transmitters and your smartphone.
When a Blue Tipz tip up alarm transmitter detects a strike, the Receiver can blink and beep so you have another way to know a tip-up has triggered. It is especially useful inside a permanent fish house, wheelhouse, or other setup where you do not want to rely only on your phone.
The Receiver can also be positioned between your tip up alarms and phone to help extend the usable Bluetooth range of the system. The manufacturer lists approximately 600 feet from the Receiver to a compatible BlueTipz transmitter and another 600 feet from the Receiver toward the phone under favorable conditions.
One Receiver can listen for multiple BlueTipz transmitters, making it a simple central alert point for anglers running several Bluetooth-enabled fishing setups.
BlueTipz is manufactured by Deep Freeze Fishing. Anglers searching for Deep Freeze Blue Tipz or Blue Tipz equipment are referring to the same BlueTipz wireless ice fishing alert system.
Add a Central Alert Point to Your BlueTipz Tip Up Alarms
Use the Blue Tipz Receiver Without Watching Your Phone
A smartphone is useful for BlueTipz notifications, Fish Log information, transmitter programming, and advanced settings, but the Receiver provides another way to monitor your tip up alarms.
When the Receiver hears an activated BlueTipz transmitter, it can provide its own audible beep and orange LED indication. This makes it useful in a fish house where your phone may be charging, silenced, buried in winter clothing, or simply not the way you want to monitor strikes.
The Receiver can also remain part of a phone-based setup. Position it between the transmitter and smartphone and it can relay the Bluetooth strike signal toward your phone.
Audible Tip Up Alarm
The built-in speaker provides a local audible indication when the Receiver hears a BlueTipz strike signal.
Orange LED
A visual LED alert provides another indication when a transmitter has activated.
Receiver Range
The current manufacturer specification lists approximately 600 feet to a compatible transmitter and 600 feet back toward a phone.
Multiple Blue Tipz Transmitters
One Blue Tipz Receiver can monitor signals from multiple compatible BlueTipz transmitters.
Need the strike transmitters too? View the BlueTipz MAX 22 Blue Tipz Tip Up Alarm .
Features
BlueTipz Receiver Features
Audible Strike Alert
The Receiver beeps after receiving a compatible BlueTipz transmitter strike signal.
Orange LED Alert
The Receiver also provides a visual orange LED indication when a tip-up transmitter activates.
Bluetooth Range Extender
Place the Receiver between a BlueTipz transmitter and smartphone to relay strike information through the system.
Multiple Tip Up Alarms
One Receiver can listen for multiple BlueTipz transmitters instead of requiring one Receiver for every fishing setup.
BlueTipz App Support
Compatible functions can be configured through the free BlueTipz app for iOS and Android.
Glove-Friendly Button
The Receiver uses a sealed push-button designed to remain easy to operate while wearing winter gloves.
Temperature Monitoring
Compatible Receivers can report ambient temperature to the BlueTipz app when paired and properly configured.
Battery Monitoring
Compatible Receivers can report battery voltage to the app, helping you confirm the Blue receiver remains powered and communicating.
How It Works
How the Blue Tipz Receiver Works
- A BlueTipz transmitter detects a strike.
The Bluetooth tip up alarm activates when the attached fishing device enters its programmed trigger zone. - The transmitter broadcasts its Bluetooth signal.
No cellular network is required for the BlueTipz devices to communicate. - The Receiver listens for the signal.
One Blue Tipz Receiver can listen for multiple compatible BlueTipz transmitters. - The Receiver blinks and beeps.
This provides a local visual and audible tip-up alert inside the fishing area. - The Receiver can relay the signal toward your phone.
When positioned between the transmitter and smartphone, it can help extend the BlueTipz network. - Your BlueTipz app can still receive the strike notification.
If the phone is part of the setup and within usable system range, the app provides the configured alert.
Range & Placement
BlueTipz Receiver Range & Placement
The Blue Tipz Receiver is most useful when it has a strong wireless path to both the transmitters and, when using smartphone notifications, the phone.
| Wireless Link | Current Manufacturer Specification | Purpose |
|---|---|---|
| BlueTipz Transmitter → Receiver | Approximately 600 ft | Receiver listens for activated Blue Tipz tip up alarm transmitters |
| Receiver → Phone | Approximately 600 ft | Receiver relays the Bluetooth signal toward the smartphone |
| MAX Transmitter + Receiver System | Current MAX transmitter information advertises over 1,750 ft system range when used with a Receiver | Extended BlueTipz network under favorable conditions |
Between Tip-Ups & Phone
For range-extender use, position the Blue receiver between the outer transmitters and your smartphone.
Keep It Elevated
Avoid unnecessarily placing the Receiver directly on the ice or behind dense obstructions when a clearer location is available.
Permanent Fish Houses
The Receiver can help improve BlueTipz reliability where fish-house construction reduces direct transmitter-to-phone range.
Test Before Fishing
Trigger each Bluetooth tip up alarm from its actual fishing position and confirm the expected Receiver and phone alerts.
Standalone Alert
Use the Receiver as a Central Tip Up Alarm
The BlueTipz Receiver is not only a Bluetooth range booster. It also provides its own audible and visual notification when it receives a compatible transmitter signal.
Built-In Beep
The Receiver's speaker produces an audible alert when a BlueTipz transmitter strike signal is received.
Orange LED
The Receiver also provides a visual LED indication for the strike.
Phone Not Required for Local Alert
The Receiver can provide its own local beep and blink without requiring a smartphone as the only alert device.
Useful With Multiple Tip Up Alarms
Place the Receiver where its audible and visual signals are easy to notice while multiple Blue Tipz transmitters monitor your fishing setups.
App & Pairing
Pair the Blue Tipz Receiver With the BlueTipz App
The Receiver does not have to be paired with your phone for its basic beep, blink, and relay functions. Pairing is optional and adds compatible monitoring and programming features.
- Install the free BlueTipz app.
Use a compatible iOS or Android smartphone. - Turn the Receiver on.
Use the sealed push-button to power the unit. - Open the BlueTipz app.
Enable the Bluetooth and phone permissions required for normal operation. - Select the Receiver area in the app.
Follow the on-screen prompts to pair a compatible Receiver. - Enable Temp/Battery Info if desired.
This allows a compatible Receiver to report temperature and battery information. - Confirm the Receiver appears in the app.
Once paired, compatible Receiver information can appear on the Home screen.
Receiver Settings
Programmable BlueTipz Receiver Settings
Name
Save and name the Receiver in the app to make it easier to identify within your BlueTipz system.
LED
Compatible Receivers allow the LED function to be enabled or disabled through the app.
Mute
The Mute setting enables or disables the Receiver's audible speaker.
Temperature & Battery Info
Enable this setting to have a compatible Receiver report ambient temperature and battery voltage to the app.
Listen for Only My Devices
The Receiver can be configured to listen only for saved Blue Tipz transmitters, helping filter out nearby systems owned by other anglers.
Vibration Setting
The app may display a vibration setting, but the standard Receiver does not contain the optional vibrator hardware.
Multiple Transmitters
One Blue Tipz Receiver Can Monitor Multiple Tip Up Alarms
You do not need to pair one Receiver with one individual tip-up. A single Receiver can listen for multiple compatible BlueTipz transmitters within usable wireless range.
Multiple Tip-Ups
Use several BlueTipz transmitters across your fishing spread while keeping one central Receiver inside the shelter.
One Central Alert Point
The Receiver provides one audible and visual location for incoming strike alerts.
My Devices Filtering
Compatible Receiver settings can filter the system so it listens only for the Blue Tipz devices you have saved.
Busy Ice-Fishing Areas
Filtering can be useful when several nearby anglers are operating BlueTipz equipment in the same area.
Linked Receivers
Can Multiple BlueTipz Receivers Be Linked Together?
Deep Freeze offers a special Receiver-to-Receiver configuration for some longer-distance setups using multiple Receivers.
This is an advanced configuration and should not be assumed to be enabled on every standard BlueTipz Receiver.
Requires Multiple Receivers
At least two compatible Receivers are required for Receiver-to-Receiver relay use.
One-Way Relay
Linked Receiver listening operates in a defined direction rather than automatically communicating in both directions.
Special Configuration
Do not assume every standard Blue Tipz Receiver is preconfigured for Receiver-to-Receiver operation.
Confirm Before Ordering
Contact Weeders Digest before purchase if Receiver-to-Receiver linking is required for your fishing setup.
Battery & Monitoring
BlueTipz Receiver Battery & Monitoring
Two AA Batteries
The Receiver requires two AA batteries.
15-Minute Monitoring
When properly paired and configured, compatible Receivers can report temperature and battery voltage periodically while powered on and communicating with the app.
Battery Replacement Guide
The BlueTipz manual suggests considering replacement when Receiver battery voltage approaches approximately 2.25V or lower when measured at room temperature.
Cold-Weather Performance
Like other battery-powered electronics, available battery performance can decrease in very cold conditions.
Quick Setup
Blue Tipz Receiver Quick Setup
- Install two AA batteries.
Make sure the batteries are installed correctly and have sufficient charge. - Power on the Receiver.
Use the sealed push-button. - Power on your BlueTipz transmitters.
Set up each Bluetooth tip up alarm on the fishing device you intend to monitor. - Choose the Receiver location.
For range-extender use, position it between the transmitters and your smartphone. - Trigger each transmitter.
Confirm that the Receiver produces the expected beep and LED alert. - Test phone alerts if using the app.
Verify Bluetooth, BlueTipz scanning, notification permissions, and usable range before fishing. - Pair the Receiver only if desired.
Pairing is optional and adds compatible monitoring and programming features.
Specifications
Blue Tipz Receiver Specifications
| Product | BlueTipz Receiver |
|---|---|
| Common Search Name | Blue Tipz Receiver |
| Product Type | Bluetooth strike-alert Receiver and range extender for BlueTipz tip up alarms |
| Manufacturer | Deep Freeze Fishing |
| Compatible System | BlueTipz / Blue Tipz strike-alert transmitters |
| Transmitter-to-Receiver Range | Approximately 600 ft under favorable conditions |
| Receiver-to-Phone Range | Approximately 600 ft under favorable conditions |
| MAX System Range | Current BlueTipz MAX system information advertises over 1,750 ft when used with a compatible Receiver under favorable conditions |
| Wireless Technology | Bluetooth Low Energy |
| Cellular Service Required | No |
| Mobile App | Free BlueTipz app for compatible iOS and Android devices |
| Audible Alert | Built-in speaker / beep |
| LED | Orange |
| Power Switch | Sealed glove-friendly push-button |
| Battery | 2 AA batteries required |
| Color | White / Blue |
| Multiple Transmitters | Yes |
| Phone Required for Local Beep / Blink | No |
| App Pairing Required | No |
| Temperature Monitoring | Available on compatible paired Receivers |
| Battery Monitoring | Available on compatible paired Receivers |
| Standard Vibration Hardware | No |
| Quantity Included | 1 BlueTipz Receiver |
Troubleshooting
BlueTipz Receiver Not Getting Tip-Up Alerts?
- Check the AA batteries.
Confirm both batteries are installed correctly and have sufficient voltage. - Confirm the Blue receiver is powered on.
Use the sealed push-button and check for expected device behavior. - Test the transmitter close to the Receiver.
Reducing distance helps determine whether the problem is wireless range or device operation. - Confirm the BlueTipz transmitter works.
Trigger the tip up alarm and confirm that it is powered and transmitting. - Check the Receiver's Mute setting.
If the Receiver gets the signal but does not beep, a compatible programmed Receiver may have its speaker muted. - Check the LED setting.
Compatible Receivers allow the LED function to be enabled or disabled. - Check My Devices filtering.
If Listen For Only My Devices is enabled, confirm the desired BlueTipz transmitter is saved correctly. - Move the Receiver.
Walls, vehicles, electronics, people, and other obstructions can reduce Bluetooth range. - Check phone settings if smartphone alerts are missing.
Bluetooth, BlueTipz scanning, notifications, Android permissions, and battery optimization can affect phone alerts.
Resources
Deep Freeze Blue Tipz Resources
BlueTipz Mobile App Manual
Review instructions for scanning, My Devices, Receiver programming, battery and temperature monitoring, pairing, and alerts.
Blue Tipz Tip Up Alarm
Add compatible BlueTipz MAX transmitters to your tip-ups and other supported fishing setups to send strike signals to the Receiver.
Ice Fishing Equipment
Shop additional ice fishing accessories, auger mounts, anchors, rod holders, tip-up equipment, and more.
FAQs
Blue Tipz Receiver & BlueTipz FAQs
What is the Blue Tipz Receiver?
The Blue Tipz Receiver is the BlueTipz wireless Receiver and range-extender accessory. It listens for compatible BlueTipz transmitter signals, provides a local beep and LED alert, and can relay a strike signal toward your smartphone.
Is Blue Tipz the same as BlueTipz?
Yes. Blue Tipz is a common spaced search variation of the official BlueTipz brand name.
What is Deep Freeze Blue Tipz?
If you searched for Deep Freeze Blue Tipz, you are looking for the BlueTipz wireless fishing-alert products made by Deep Freeze Fishing.
What does the BlueTipz Receiver do?
The Receiver listens for compatible BlueTipz transmitter signals. When a strike signal is received, it can beep and blink and can also relay the signal toward a smartphone.
Is the BlueTipz Receiver a Bluetooth tip up alarm?
It is part of a Bluetooth tip up alarm system, but the Receiver itself does not detect tip-up movement. A compatible BlueTipz transmitter mounts to the fishing device and sends the strike signal to the Receiver.
What is the Blue Tipz tip up alarm?
The Blue Tipz tip up alarm system uses a BlueTipz transmitter to detect movement of a compatible fishing setup and send a Bluetooth strike signal to a phone, Receiver, or both.
Can one Receiver work with multiple tip up alarms?
Yes. One BlueTipz Receiver can listen for multiple compatible BlueTipz transmitters within usable wireless range.
Is this the "blue receiver" for BlueTipz?
Yes. If you searched for a blue receiver in connection with BlueTipz ice fishing equipment, this is the dedicated BlueTipz Receiver used with compatible BlueTipz transmitters.
Does the Receiver make a sound?
Yes. The Receiver has an audible speaker and can beep after receiving a strike signal.
Does the Receiver have a light?
Yes. The Receiver uses an orange LED for visual indication.
Do I need my phone to use the Receiver?
Not for the local beep and LED alert. A compatible smartphone is useful for app notifications, programming, pairing, and monitoring features.
Does BlueTipz require cell service?
No. BlueTipz devices communicate locally using Bluetooth technology.
Does BlueTipz require Wi-Fi?
No. Normal strike-alert communication does not depend on a Wi-Fi network.
How far does the Blue Tipz Receiver work?
The manufacturer lists approximately 600 feet between the Receiver and a compatible BlueTipz transmitter and approximately 600 feet from the Receiver toward the phone under favorable conditions.
Does the Receiver increase BlueTipz range?
Yes. Position the Receiver between the transmitter and smartphone to relay the Bluetooth strike signal.
Do I need one Receiver for every tip-up?
No. Multiple BlueTipz transmitters can communicate with one Receiver when they are within usable range.
What batteries does the BlueTipz Receiver use?
The Receiver requires two AA batteries.
Can I see Receiver battery information in the app?
Yes, on compatible Receiver generations when paired and configured for battery and temperature monitoring.
Does the Receiver measure temperature?
Compatible paired Receivers can report ambient temperature through the BlueTipz app.
Do I have to pair the Receiver with my phone?
No. Pairing is optional. The Receiver can still perform its basic strike-alert and relay functions without app pairing.
Can I mute the Receiver?
Compatible programmable Receivers include a Mute setting that enables or disables the audible speaker.
Can I turn off the Receiver LED?
Compatible programmable Receiver generations allow the LED to be enabled or disabled through the BlueTipz app.
Does the BlueTipz Receiver vibrate?
Not as a standard feature. The standard Receiver does not include the optional vibration hardware.
Is the Receiver useful in a permanent fish house?
Yes. A Blue Tipz Receiver can provide a central audible and visual alert inside the shelter and can help relay Bluetooth signals where walls or distance reduce direct phone reception.
Can BlueTipz Receivers be linked together?
Special Receiver-to-Receiver configurations may be available for some multi-Receiver setups. Contact Weeders Digest before ordering if this capability is required.
How many Receivers are included?
Each quantity includes one BlueTipz Receiver.
Are BlueTipz transmitters included?
No. BlueTipz transmitters are sold separately unless a specific bundle states otherwise.
Where can I buy the Blue Tipz tip up alarm transmitters?
You can purchase the BlueTipz MAX 22 Bluetooth Tip Up Alarm transmitters separately from Weeders Digest.
Where can I get help with my Blue Tipz Receiver?
Contact Weeders Digest Product Support at 877-224-4899 for help with BlueTipz setup, range, transmitters, app settings, or troubleshooting.
Related Products
