Teich-Aire Rocking Piston Compressors
Description

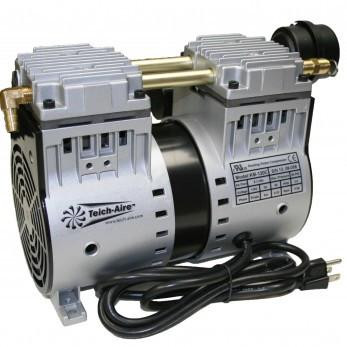

Kasco Teich-Aire Rocking Piston Compressors
Oil-less rocking piston compressors from Kasco, built for continuous, year-round aeration. Choose 1/4, 1/2 or 3/4 HP in 120 V or 230 V.
Teich-Aire compressors power Kasco's Robust-Aire and Home Series diffused aeration systems. Use one to replace an old or damaged compressor, or to upgrade a non-Kasco diffused aeration system.
- Oil-less rocking piston design for continuous duty
- 1/4, 1/2 and 3/4 HP sizes
- UL/CSA recognized; 208-240 V models are CE marked
- Quiet operation with vibration mounts
- Thermal overload protection
- Ramped internal valve plate for restart under load
- Molex connector, cord connector and 6 ft power cord
Where Teich-Aire Compressors Are Used
Kasco lists applications including ponds, lakes, golf course ponds, fish farms, water treatment and harsh industrial settings.
- Replacement compressor for Kasco Robust-Aire and Home Series systems
- Upgrade for non-Kasco diffused aeration systems
Airflow by Model (CFM)
Airflow drops as back pressure rises (deeper diffusers mean more pressure). Kasco's published figures:
1/4 HP (KM-60C / KM-60HC): 3.8 CFM at 0 PSI, 2.9 CFM at 20 PSI, 2.2 CFM at 50 PSI.
1/2 HP (KM-120C / KM-120HC): 5.5 CFM at 0 PSI, 4.2 CFM at 20 PSI, 2.7 CFM at 50 PSI.
3/4 HP (KM-200C / KM-200HC): 7.4 CFM at 0 PSI, 6.4 CFM at 20 PSI, 5.0 CFM at 50 PSI.
More About the Teich-Aire Rocking Piston Compressors
Kasco’s Teich-Aire Rocking Piston Compressors are continuous-duty, oil-free, aeration compressors that are a great choice for aerating ponds and other deep water applications.
Whether run intermittently or continuously, these rocking piston aeration compressors will deliver reliable and efficient performance day-in and day-out. Each unit includes a 40 PSI pressure relief valve, vibration mounts, intake air filter assembly, and brass hose fitting for easy implementation into your existing system. Each compressor has a 6 ft. power cord, thermal overload protection, and a ramped internal valve plate that allows for restart under load after power failures.
Available in 1/4, 1/2, or 3/4HP, these rocking piston compressors will deliver the performance you need for all your compressor installations. Our own line of aeration compressors will meet the demand of continuous-duty, year-round, larger aeration applications.
- Oil-less piston
- Continuous or intermittent operation
- 115V or 230V and 50 Hz or 60 Hz power options
- Safety Tested: ETL listed to UL and CSA standards, CE marked (the KM-200C does not carry CSA recognition)
- Quiet operation
- Low maintenance and dependable design
- Backed by a two-year warranty
- 6 ft. power cord
- Thermal overload protection
- Ramped internal valve plate for restarting under load
- 40 PSI pressure relief valve, intake air filter, brass hose fitting
Questions About the Teich-Aire Rocking Piston Compressors?
Call Weeders Digest at 877-224-4899 for help choosing the right equipment for your lake or pond.
Specifications
Teich-Aire Rocking Piston Compressors Specifications
| Manufacturer | Kasco Marine |
|---|---|
| Type | Oil-less rocking piston |
| Horsepower | 1/4, 1/2 or 3/4 HP |
| Voltage (Kasco rating) | 115 V 60 Hz or 208-240 V 50/60 Hz |
| 1/4 HP models | KM-60C (115 V): 2.2 A @ 0 PSI / 3.2 A @ 20 PSI; KM-60HC (208-240 V): 1.1 A / 1.6 A |
| 1/2 HP models | KM-120C (115 V): 3 A / 4 A; KM-120HC (208-240 V): 1.5 A / 2 A |
| 3/4 HP models | KM-200C (115 V): 5.4 A / 6.9 A; KM-200HC (208-240 V): 3.1 A / 3.7 A |
| Power cord | 6 ft |
| Certifications | UL/CSA recognized; CE marked (208-240 V models) |
Related Tools
Products That Work With the Teich-Aire Rocking Piston Compressors
Related Weeders Digest products to consider with the Teich-Aire Rocking Piston Compressors.
FAQs
Teich-Aire Rocking Piston Compressors FAQs
Answers to common questions about the Teich-Aire Rocking Piston Compressors.
What is the difference between the 120 V and 230 V options?
Both are the same compressor wound for different supply voltages. Kasco rates them 115 V (60 Hz) and 208-240 V (50/60 Hz); the higher-voltage models draw roughly half the amps.
Does the compressor need oil?
No. Teich-Aire compressors are an oil-less rocking piston design.
Can I use a Teich-Aire in a non-Kasco aeration system?
Yes. Kasco says Teich-Aire compressors can replace old or damaged compressors and upgrade non-Kasco diffused aeration systems.
Which size do I need?
It depends on how many diffusers you run and how deep they sit. More depth means more back pressure and less airflow. Call the Weeders Digest team at 877-224-4899 and we will help you size it.
Is it designed to run all the time?
Yes. Kasco designs Teich-Aire compressors for continuous, year-round aeration.
Does it have overload protection?
Yes, each compressor has thermal overload protection and a ramped valve plate that lets it restart under load.
