Robust-Aire Diffused Aeration System
Description
Kasco Robust-Aire Diffused Aeration System
A shore-mounted compressor sends air through self-weighted tubing to diffusers on the bottom, mixing your pond or lake from the bottom up. Designed for water 8 ft and deeper, with no electricity in the water.
Robust-Aire is made by Kasco Marine. Diffused aeration helps limit weed and algae growth, fish kills and winterkill, speeds the breakdown of organic muck, and can keep open water in winter to help prevent ice damage.
Choose the number of diffusers, 120 V or 208 V power, and a base mount cabinet, post mount cabinet or no cabinet.
- Designed for depths of 8 ft and deeper and for continuous operation
- No electricity in the water
- Oil-less Teich-Aire rocking piston compressor(s)
- Self-weighted 3/8" tubing (100 ft rolls)
- Compressor filters with maintenance indicators
- AireGuard cabinets keep the compressor cooler and cleaner
- Optional remote manifold places the compressor up to a mile from the water
How It Works
The compressor sits on shore and pushes air through weighted tubing to a diffuser on the bottom. Rising bubbles carry bottom water to the surface, circulating and aerating the whole water column.
- Helps limit weed and algae growth
- Helps prevent fish kills and winterkill
- Speeds organic decomposition
- Keeps open water to help prevent ice damage
Cabinet Options
Base mount cabinet: Kasco's AireGuard cabinets draw air through an external filter and use fans to keep the compressor cooler and cleaner, with external maintenance indicators and easy-to-remove panels. Small cabinets handle 1-3 diffusers, medium 4-6 and large 7-12.
Post mount cabinet: holds the compressor above ground on a wall or wooden post (post not included); offered for 1-3 diffuser systems.
No cabinet: compressor only, for 1-3 diffusers, if you already have a protected location for it.
Warranty
Kasco backs Robust-Aire with a lifetime warranty on the diffuser and cabinet, 15 years on tubing, 3 years on the compressor motor and 2 years on compressor piston cups and cylinders.
More About the Robust-Aire Diffused Aeration System
Engineered to be the best in the industry.
NEWKasco’s Robust-Aire™ systems are NOW 34% quieter and easier to maintain.Newly redesigned, these systems feature a significant reduction in sound (patent pending), larger air filters on 1/4HP and 1/2HP systems for less frequent cleaning, and a visual maintenance indicator to alert when maintenance is needed.
Get a FREE Layout & Quote Customized For Your Pond or Lake!
Answer a few questions and we will create a custom layout for your pond! Fill out our online form

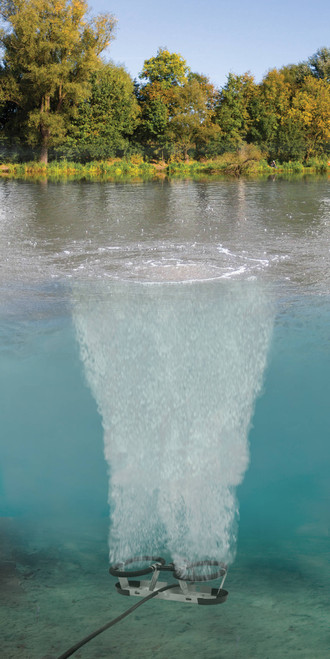

Robust-Aire™ systems pump compressed air from a shore-mounted compressor through self-weighted lines to a diffuser on the pond, lake or tank bottom. The diffuser then continuously releases micro-bubbles that rise to the surface carrying large volumes of water. This induces oxygen-transfer as well as beneficial water movement and mixing.
All Robust-Aire™ diffused aeration systems are available with an optional remote manifold allowing the compressor to be installed up to a mile away from the water’s edge.
Benefits of Robust-Aire
Is very beneficial to lakes and ponds adding aeration to the water.
- Increases oxidation of bottom to speed up organic decompostiion.
- Expands fish habitat
- No Electricity in the water
- Creates open water to prevent ice damage to docks and boats
- Eliminates thermal and chemical stratification
- Designed for 24-hour operation with minimal maintenance
- Inlet air filter visual maintenance indicator
- Patent Pending noise cancelling design to dramatically reduce compressor sound
Systems Include
- Rocking Piston Compressors
- Cabinet Option
- Diffuser Head(s)
- Weighted Tubing
Common Applications
- Backyard ponds and lakes
- Industrial
- Mixing
- Winterkill prevention
- Waterfowl Protection
- Much More
Warranty
- Diffusers: 5 years
- Teich-Aire Compressors: 2 years
- Cabinets 5 years
- SureSink Weighted Tubing: 10 years
| RA1-PM | Number of Diffusers: 1 · Voltage: 120 · Phase: 1 · Compressor: KM-60 · Rolls of 3/8 in. Tubing: 1 |
|---|---|
| RAH1-PM | Number of Diffusers: 1 · Voltage: 208-240 · Phase: 1 · Compressor: KM-60H · Rolls of 3/8 in. Tubing: 1 |
| RA2-PM | Number of Diffusers: 2 · Voltage: 120 · Phase: 1 · Compressor: KM-60 · Rolls of 3/8 in. Tubing: 2 |
| RAH2-PM | Number of Diffusers: 2 · Voltage: 208-240 · Phase: 1 · Compressor: KM-60H · Rolls of 3/8 in. Tubing: 2 |
| RA3-PM | Number of Diffusers: 3 · Voltage: 120 · Phase: 1 · Compressor: KM-120 · Rolls of 3/8 in. Tubing: 3 |
| RAH3-PM | Number of Diffusers: 3 · Voltage: 208-240 · Phase: 1 · Compressor: KM-120H · Rolls of 3/8 in. Tubing: 3 |
| RA1 | Number of Diffusers: 1 · Voltage: 120 · Phase: 1 · Compressor: KM-60 · Rolls of 3/8 in. Tubing: 1 |
| RAH1 | Number of Diffusers: 1 · Voltage: 208-240 · Phase: 1 · Compressor: KM-60H · Rolls of 3/8 in. Tubing: 1 |
| RA2 | Number of Diffusers: 2 · Voltage: 120 · Phase: 1 · Compressor: KM-60 · Rolls of 3/8 in. Tubing: 2 |
| RAH2 | Number of Diffusers: 2 · Voltage: 208-240 · Phase: 1 · Compressor: KM-60H · Rolls of 3/8 in. Tubing: 2 |
| RA3 | Number of Diffusers: 3 · Voltage: 120 · Phase: 1 · Compressor: KM-120 · Rolls of 3/8 in. Tubing: 3 |
| RAH3 | Number of Diffusers: 3 · Voltage: 208-240 · Phase: 1 · Compressor: KM-120H · Rolls of 3/8 in. Tubing: 3 |
| RA4 | Number of Diffusers: 4 · Voltage: 120 · Phase: 1 · Compressor: (2) KM-60 · Rolls of 3/8 in. Tubing: 4 |
| RAH4 | Number of Diffusers: 4 · Voltage: 208-240 · Phase: 1 · Compressor: (2) KM-60H · Rolls of 3/8 in. Tubing: 4 |
| RA5 | Number of Diffusers: 5 · Voltage: 120 · Phase: 1 · Compressor: KM-60 & KM-120 · Rolls of 3/8 in. Tubing: 5 |
| RAH5 | Number of Diffusers: 5 · Voltage: 208-240 · Phase: 1 · Compressor: KM-60H & KM-120H · Rolls of 3/8 in. Tubing: 5 |
| RA6 | Number of Diffusers: 6 · Voltage: 120 · Phase: 1 · Compressor: (2) KM-120 · Rolls of 3/8 in. Tubing: 6 |
| RAH6 | Number of Diffusers: 6 · Voltage: 208-240 · Phase: 1 · Compressor: (2) KM-120H · Rolls of 3/8 in. Tubing: 6 |
| RA1-NC | Number of Diffusers: 1 · Voltage: 120 · Phase: 1 · Compressor: KM-60 · Rolls of 3/8 in. Tubing: 1 |
| RAH1-NC | Number of Diffusers: 1 · Voltage: 208-240 · Phase: 1 · Compressor: KM-60H · Rolls of 3/8 in. Tubing: 1 |
| RA2-NC | Number of Diffusers: 2 · Voltage: 120 · Phase: 1 · Compressor: KM-60 · Rolls of 3/8 in. Tubing: 2 |
| RAH2-NC | Number of Diffusers: 2 · Voltage: 208-240 · Phase: 1 · Compressor: KM-60H · Rolls of 3/8 in. Tubing: 2 |
| RA3-NC | Number of Diffusers: 3 · Voltage: 120 · Phase: 1 · Compressor: KM-120 · Rolls of 3/8 in. Tubing: 3 |
| RAH3-NC | Number of Diffusers: 3 · Voltage: 208-240 · Phase: 1 · Compressor: KM-120H · Rolls of 3/8 in. Tubing: 3 |
| RA4-NC | Number of Diffusers: 4 · Voltage: 120 · Phase: 1 · Compressor: (2) KM-60 · Rolls of 3/8 in. Tubing: 4 |
| RAH4-NC | Number of Diffusers: 4 · Voltage: 208-240 · Phase: 1 · Compressor: (2) KM-60H · Rolls of 3/8 in. Tubing: 4 |
| RA5-NC | Number of Diffusers: 5 · Voltage: 120 · Phase: 1 · Compressor: KM-60 & KM-120 · Rolls of 3/8 in. Tubing: 5 |
| RAH5-NC | Number of Diffusers: 5 · Voltage: 208-240 · Phase: 1 · Compressor: KM-60H & KM-120H · Rolls of 3/8 in. Tubing: 5 |
| RA6-NC | Number of Diffusers: 6 · Voltage: 120 · Phase: 1 · Compressor: (2) KM-120 · Rolls of 3/8 in. Tubing: 6 |
| RAH6-NC | Number of Diffusers: 6 · Voltage: 208-240 · Phase: 1 · Compressor: (2) KM-120H · Rolls of 3/8 in. Tubing: 6 |
Questions About the Robust-Aire Diffused Aeration System?
Call Weeders Digest at 877-224-4899 for help choosing the right equipment for your lake or pond.
Specifications
Robust-Aire Diffused Aeration System Specifications
| Manufacturer | Kasco Marine |
|---|---|
| Recommended depth | 8 ft and deeper |
| Voltage | 120 V or 208-240 V (60 Hz) |
| 1-2 diffusers | 1/4 HP compressor (KM-60C / KM-60HC); 2.5 A @ 120 V, 1.25 A @ 208-240 V |
| 3 diffusers | 1/2 HP compressor (KM-120C / KM-120HC); 3.5 A @ 120 V, 1.75 A @ 208-240 V |
| 4-6 diffusers | 2 x 1/2 HP compressors; 7 A @ 120 V, 3.5 A @ 208-240 V |
| Tubing | 3/8" self-weighted, 100 ft rolls; included on 1-3 diffuser systems (1 roll per diffuser) |
| Warranty | Diffuser and cabinet: lifetime; tubing: 15 yr; compressor motor: 3 yr; piston cups & cylinders: 2 yr |
Related Tools
Products That Work With the Robust-Aire Diffused Aeration System
Related Weeders Digest products to consider with the Robust-Aire Diffused Aeration System.
FAQs
Robust-Aire Diffused Aeration System FAQs
Answers to common questions about the Robust-Aire Diffused Aeration System.
How deep does my pond need to be?
Kasco designs Robust-Aire for depths of 8 ft and deeper.
Is there electricity in the water?
No. The compressor stays on shore and only air travels through the tubing to the diffusers.
Is tubing included?
On Kasco's 1-3 diffuser systems, tubing is included (one 100 ft roll per diffuser). Larger systems ship without tubing so it can be ordered to length.
Which cabinet should I choose?
The base mount cabinet protects, cools and filters the compressor. The post mount cabinet holds it off the ground on a wall or post. Choose no cabinet if you already have a sheltered spot for the compressor.
How far from the water can the compressor be?
With Kasco's optional remote manifold, the compressor can sit up to a mile from the water's edge.
How many diffusers do I need?
It depends on the size, shape and depth of your water. Call the Weeders Digest team at 877-224-4899 and we will help you size a system.
What is the warranty?
Lifetime on the diffuser and cabinet, 15 years on tubing, 3 years on the compressor motor and 2 years on piston cups and cylinders.
How is diffused aeration different from surface aeration or fountains?
Diffused aeration releases air at the pond bottom, gently lifting low-oxygen water upward and allowing it to mix with oxygen-rich surface water, which reduces harmful stratification. This slow, continuous circulation spreads dissolved oxygen more evenly throughout the water column, improving overall water quality and supporting fish health.
What size pond or lake is each Robust-Aire system designed to handle?
Each diffuser can effectively aerate about 1 to 1.5 acres of water up to 50 feet deep. Larger systems with multiple diffusers are needed for larger or irregularly shaped ponds.
Can I install this without running electricity near the water?
Yes. The compressor is placed onshore and can be placed up to one mile away from the shoreline using a manifold and trenching pvc tubing back to the compressor.
